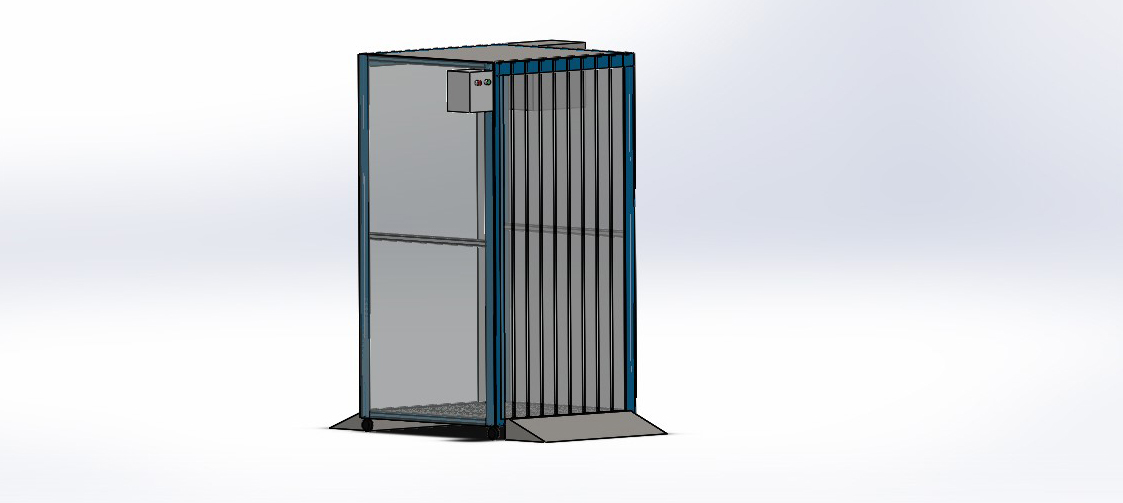

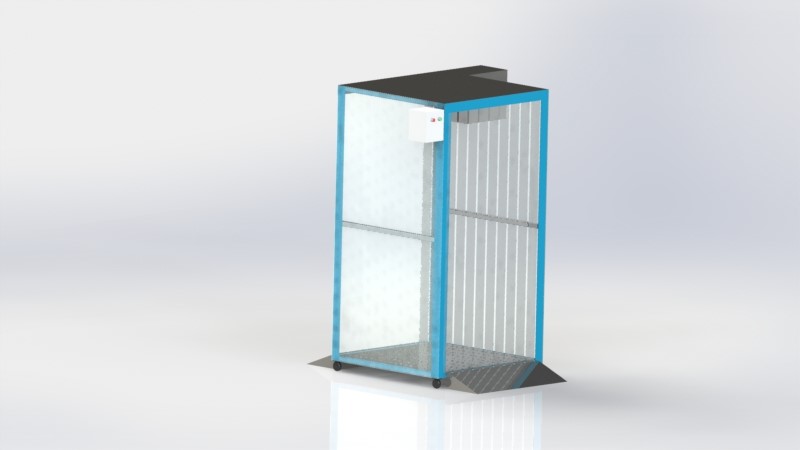

Sanitizing Tunnel

“We safe cabinet”

Disinfection Gate or Tunnel is designed by City scales FZC Ajman, Which is 100% completely manufactured from United Arab Emirates.
Our System have the capability of Eliminating 99.99% Bacteria, Fungi, Viruses and Spores by Mist Disinfection with Better Flexibility to use different types of liquid form chemicals or mixtures it is truly a very versatile Designs.

This can be customized to Suit Different Applications like but not limited to

  • Individual Personal Movement
  • Vehicular Movement
  • Cattle/livestock Movement

Our tunnel finds varied applications in office entrances, Camp Entrances, Building Entrances, Stores, Shops, Malls and any Public places.

What makes Tunnel unique from any other designs in Markets?

  • 1. Light weight and Easy to Relocate
  • 2. Dimensions can be modified to Suite Specific customer requirements.
  • 3. Advanced options also available according to customer needs. We city scales have 3 main classifications.

Model - Class 2

In this we are using Light Sensor or infrared Motion Sensor along with alarm units that indicates the cycles for completing sanitizing periods. Max up to 4 -10 seconds sanitizing time

Sprinklers are well tested with pressure calculation in order to avoid other side effects for the human caused due to Chemicals or Mixtures using.

Using special Ultra Violet Beam of Light which is well mirrored in order to avoid UV radiation to Human.

COMPONENTS SPECIFICATIONS
1. PIR Motion Sensor Detection Range = 180˚
Power Source= 240Vac/ 50Hz
Rated Load=Max 1200 W
Detection Distance=12m Max
Time Delay=Min 10secs±3sec
Max 7 mins±2mnt
Ambient Light= <3-2000LUX
Installation Height=1.8-2.5m
Detection Motion Speed=0.6-1.5m/s
Protection Rating=IP44
2. Diaphragm Pump Open flow = 1.6 LPM
Voltage = 24VDC
Ampere=0.8A
Pressure= 80 psi – 130 psi
3. UV Lamp With Ballast Voltage input= 240vac, 50Hz
Lamp Type= 6-11w
4. Infrared Thermal Imager Array Temperature Sensor Human detection distance: 7m or less (reference value) 22.966 ft
Typ. 0.05℃ 32.900℉ 1Hz
Typ. 0.16℃ 32.288℉ 10Hz
Viewing angle: typical 60°
Optical axis gap: within typical ±5.6°
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (sleep mode)
Typical 0.8mA (stand-by mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15s (time to stabilize output after setup)
Number of pixel: 64 (vertical 8 * horizontal 8 matrix)
External interface: 1²C (fast mode)
Frame rate: typical 10 frames/sec or 1 frame/sec
Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)
Output mode: temperature output
Calculate mode: no moving average or twice moving average
Temperature output resolution: 0.25℃ / 32.45℉
Number of sensor address: 2 (1²C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃ / 32.1125℉
Item size: 42 * 37mm / 1.7 * 1.5in
Item weight: 10g / 0.4ounce
Package size: 90 * 60 * 8mm / 3.5 * 2.4 * 0.3in
Package weight: 11g / 0.4ounce

Disinfectant cabinet with Thermal Sensor,

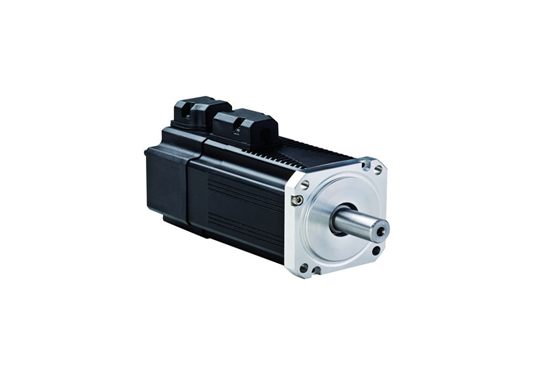

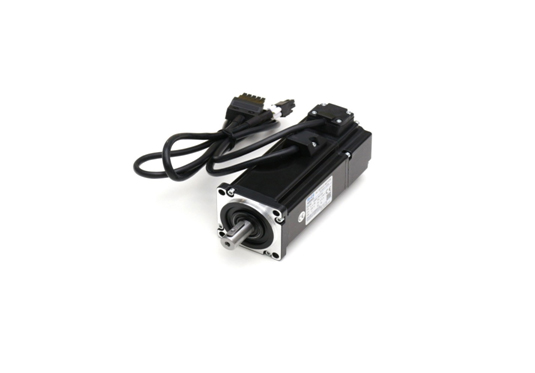

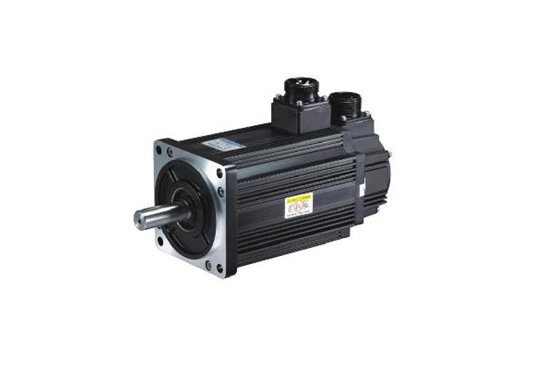

Ac Servo Motor

What a servomotor is can be a tricky exercise, but basically the hallmark of any servomotor is the presence of feedback and closed-loop control. Servomotors are able to provide precise control of torque, speed or position using closed-loop feedback. They also have the ability to operate at zero speed while maintaining enough torque to maintain a load in a given position. Servomotors have several distinct advantages over other types of motors. For starters, they offer more precise control of motion. The output shaft rotates in about half of a circle, or 180 degrees.

Classifications

  • 0.5-1.0 KW, 3Ph, 500 pulse Encoder
  • 1.0-2.0 KW, 3Ph, 500 Pulse Encoder
  • 2.0-3.0 KW, 3Ph, 800 pulse Encoder
  • 3.0-4.0 KW, 3ph,1000pulse Encoder
  • 4.0-5.0 KW, 3Ph,1000pulse Encoder
  • 5.0-6.0 KW ,3Ph,1200pulse Encoder
  • 6.0-7.0 KW, 3Ph,1500pulse Encoder
  • 7.0-8.0 KW, 3Ph,1500pulse Encoder
  • 8.0-9.0 KW, 3ph,1500pulse Encoder
  • 9.0-10.0KW, 3ph,1500pulse Encoder
  • 10-20 KW, 3ph, 1500pulse Encoder
  • 20-30 KW, 3ph, 2000pulse Encoder

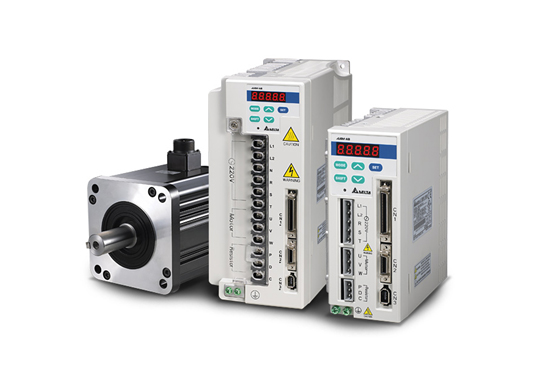

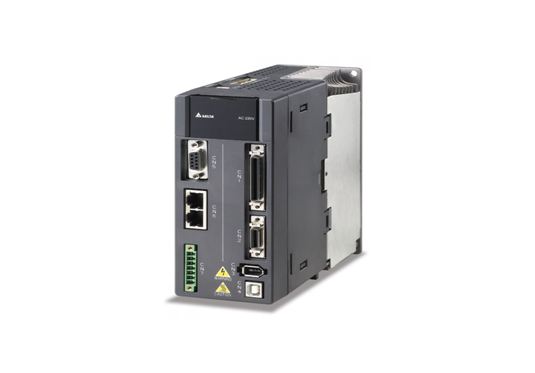

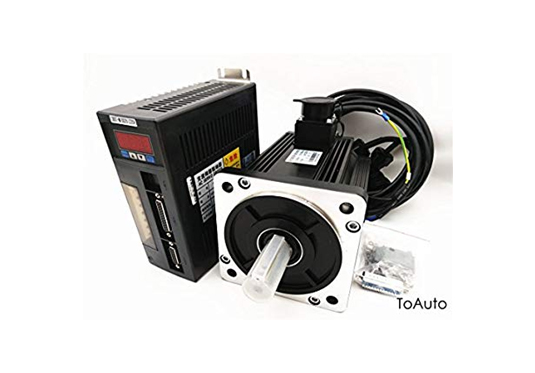

Servo Drive

A servo drive is a special electronic amplifier used to power electric servomechanisms. A servo drive monitors the feedback signal from the servomechanism and continually adjusts for deviation from expected behaviour

Classifications

  • 0.5-1.5 KW ,3ph, 400vac, 5Amp
  • 1.0-2.0 KW, 3Ph, 400vac, 5Amp
  • 2.0-3.0 KW, 3Ph, 400vac, 5Amp
  • 3.0-4.0 KW, 3ph, 400vac, 8Amp
  • 4.0-5.0 KW, 3Ph, 400vac, 10Amp
  • 5.0-6.0 KW ,3Ph,400vac, 12Amp
  • 6.0-7.0 KW, 3Ph,400vac, 14Amp
  • 7.0-8.0 KW, 3Ph,400vac, 16Amp
  • 8.0-9.0 KW, 3ph,400vac,20Amp
  • 10.0-30.0 KW, 3ph,400vac,36Amp

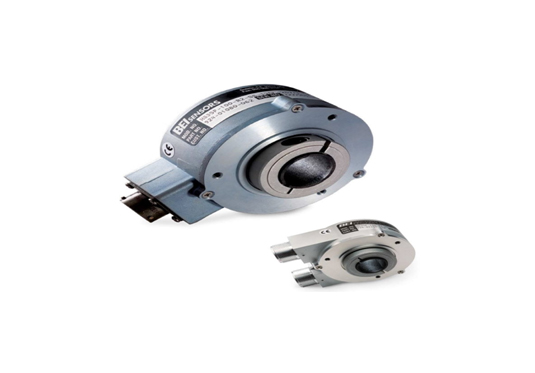

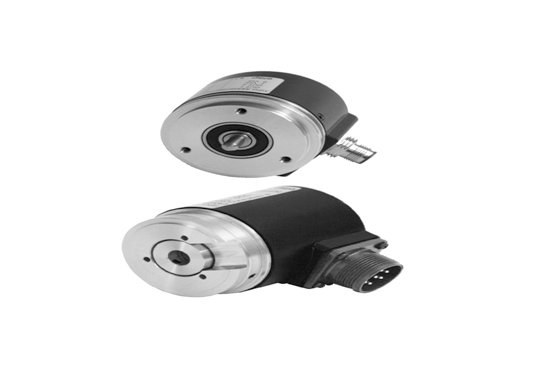

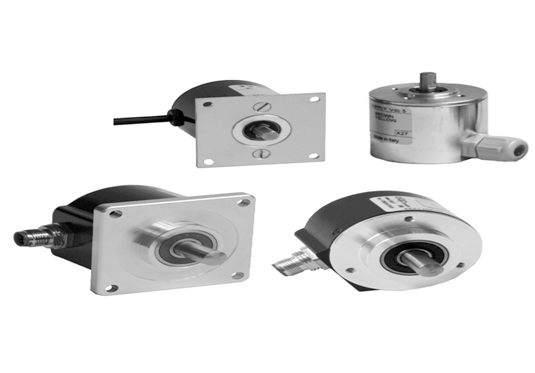

Rotary Encoders

Encoder is the device, circuit, transducer, software program, algorithm or person that converts information from one format or code to another, for the purpose of standardization, speed or compression.

Classifications

  • 250 PPR, 5 wire, 1ph,2ph,3ph
  • 500 PPR, 5 wire, 1ph,2ph,3ph
  • 750 PPR, 5 wire, 1ph,2ph,3ph
  • 1000 PPR, 5 wire, 1ph,2ph,3ph
  • 1500 PPR, 8 wire, 1ph,2ph,3ph
  • 2000 PPR, 8 wire, 1ph,2ph,3ph
  • 2500 PPR, 8wire, 1ph,2ph,3ph
  • 3000 PPR, 8wire, 1ph,2ph,3ph

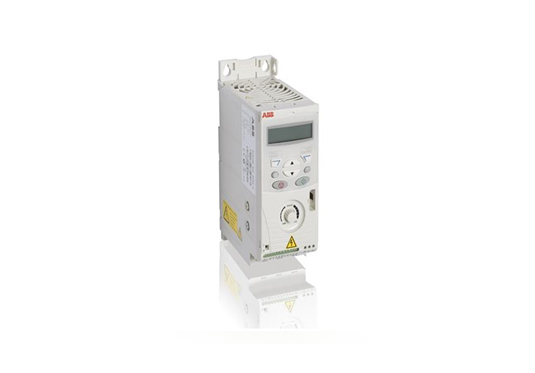

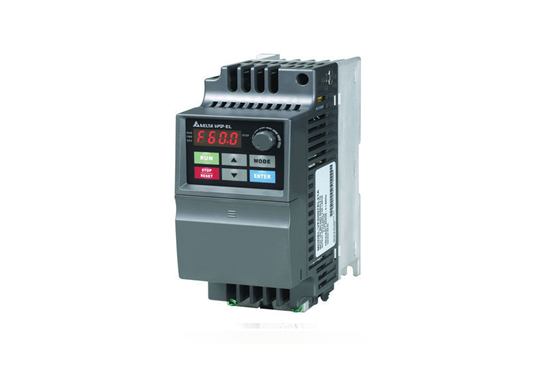

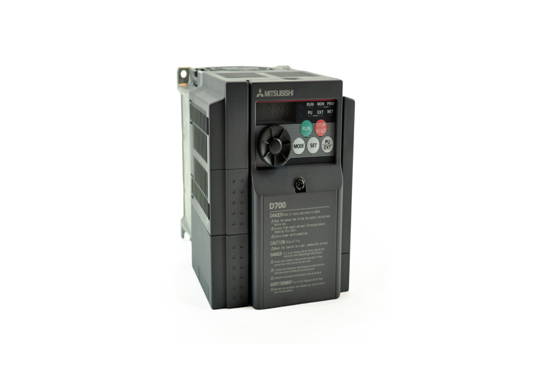

Variable Frequency Drives VFDs

A Variable Frequency Drive (VFD) is motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. Other names for a VFD are variable speed drive, adjustable speed drive, adjustable frequency drive, AC drive, micro drives, and inverter Drive.

Classifications

  • 0.5-1.0 KW-1ph-220vac-50Hz
  • 1.0-2.0 KW-1ph-220vac-50Hz
  • 2.0-3.0 KW-3ph-400vac-50Hz
  • 3.0-4.0 KW-3ph-400vac-50Hz
  • 4.0-8.0 KW-3ph-400vac-50Hz
  • 8.0-10.0 KW-3ph-400vac-50Hz
  • 10.0-16.0KW-3ph-400vac-50Hz
  • 16.0-20.0KW-3ph-400vac-50Hz
  • 20.0-50.0KW-3ph-400vac-50Hz

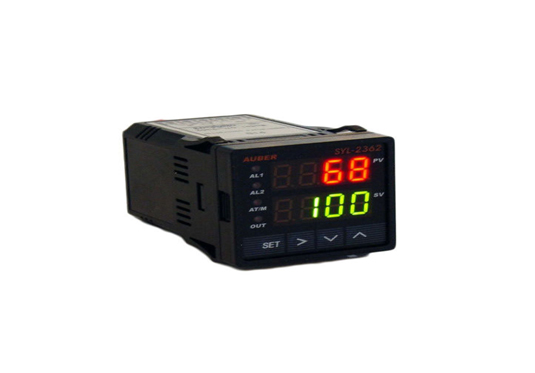

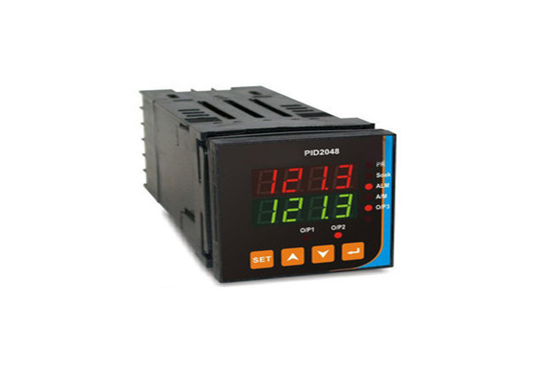

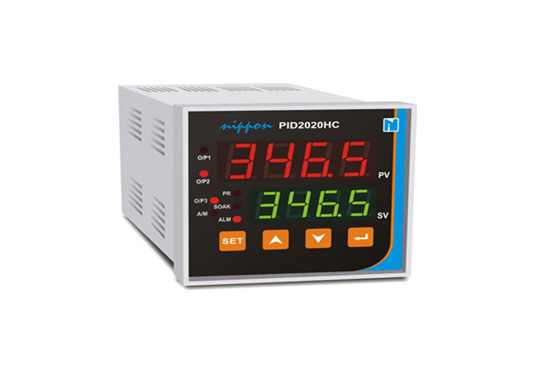

PID Controllers

The proportional–integral–derivative controller (PID controller. or three-term controller) is a control loop feedback mechanism widely used in industrial control systems and a variety of other applications requiring continuously modulated control.

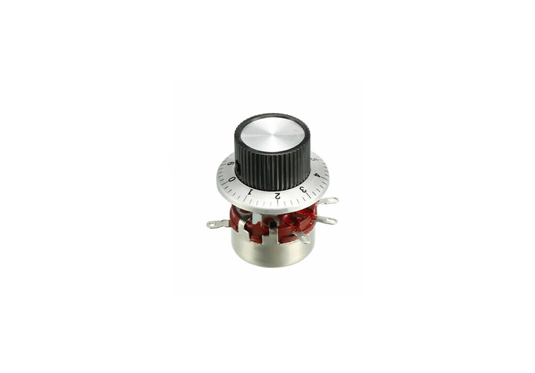

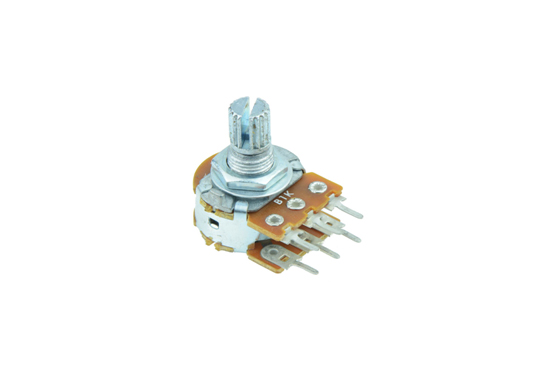

Potentiometers

A potentiometer is the three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. If only two terminals are used, one end and the wiper, it acts as a variable resistor or rheostat.

Classifications

  • Dual Gang Potentiometer
  • Concentric Potentiometer
  • Multi-turn Pot Potentiometer
  • Linear type Potentiometer
  • Digital Type Potentiometer

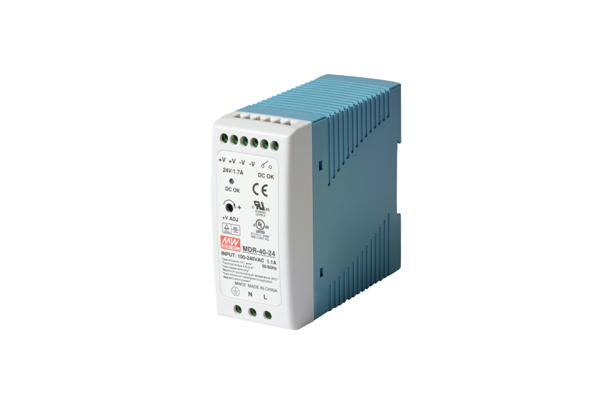

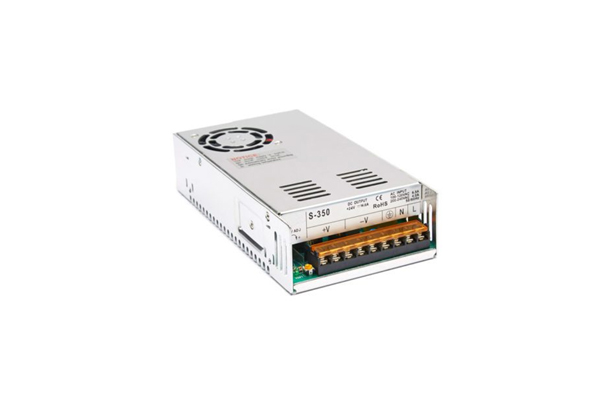

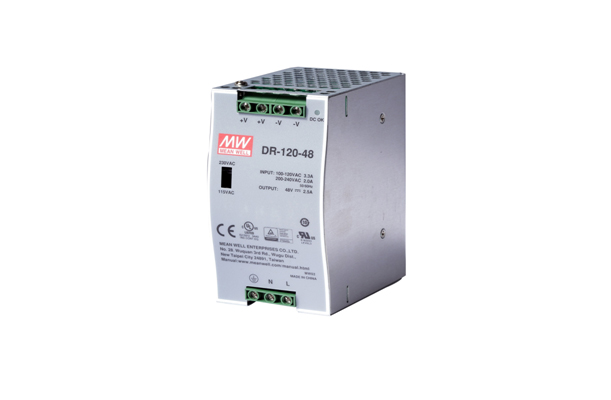

Industrial Power supply

Power supply is the electrical device that supplies electric power to an electrical load. ... voltage or current to be programmed by mechanical controls (e.g., knobs on the power supply front panel), or by means of a control input, or both.

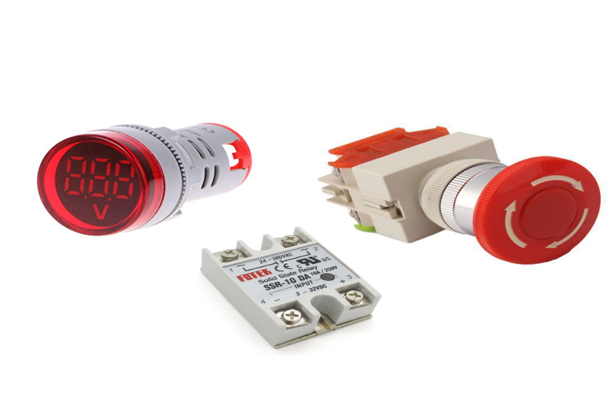

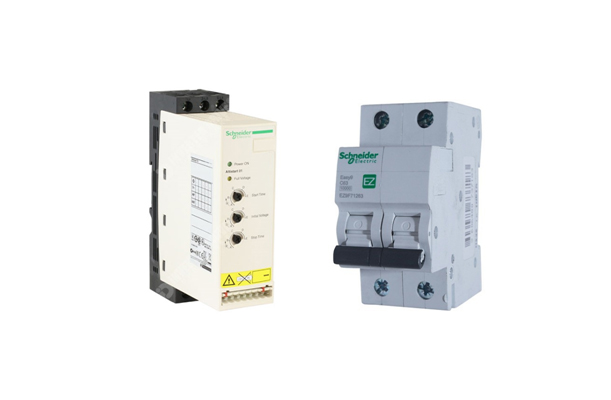

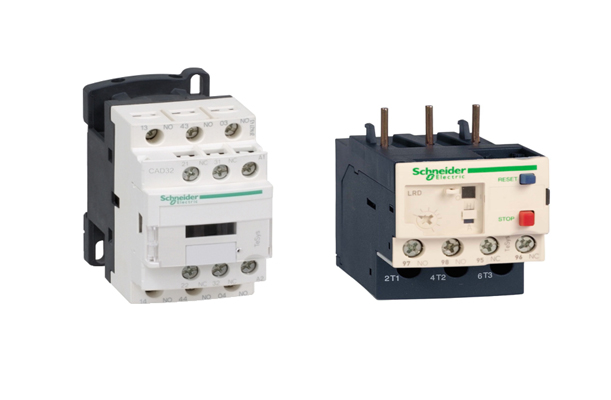

Switch Gears

In electric power system, switchgear is composed of electrical disconnect switches, fuses or circuit breakers used to control, protect and isolate electrical equipment. Switchgear is used both to de-energize equipment to allow work to be done and to clear faults downstream.
